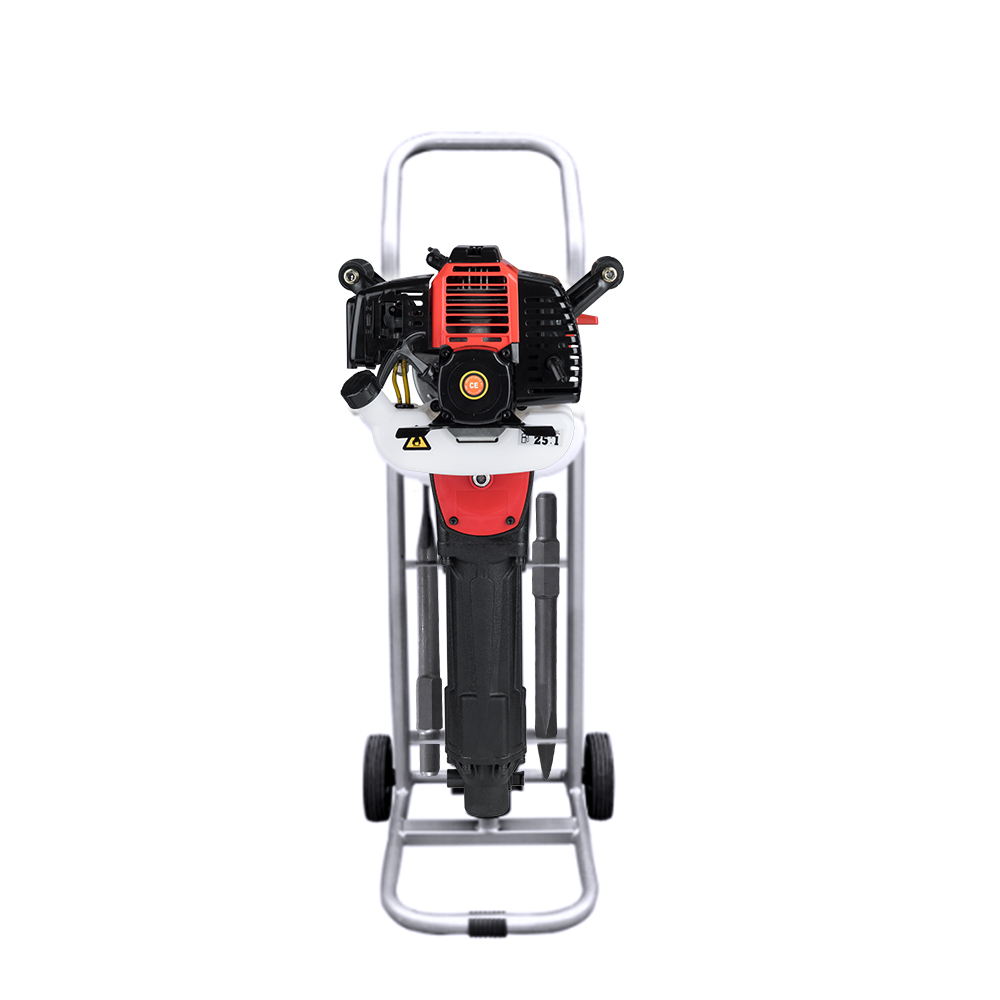

Petrol Powered Jackhammer /Gasoline Breaker

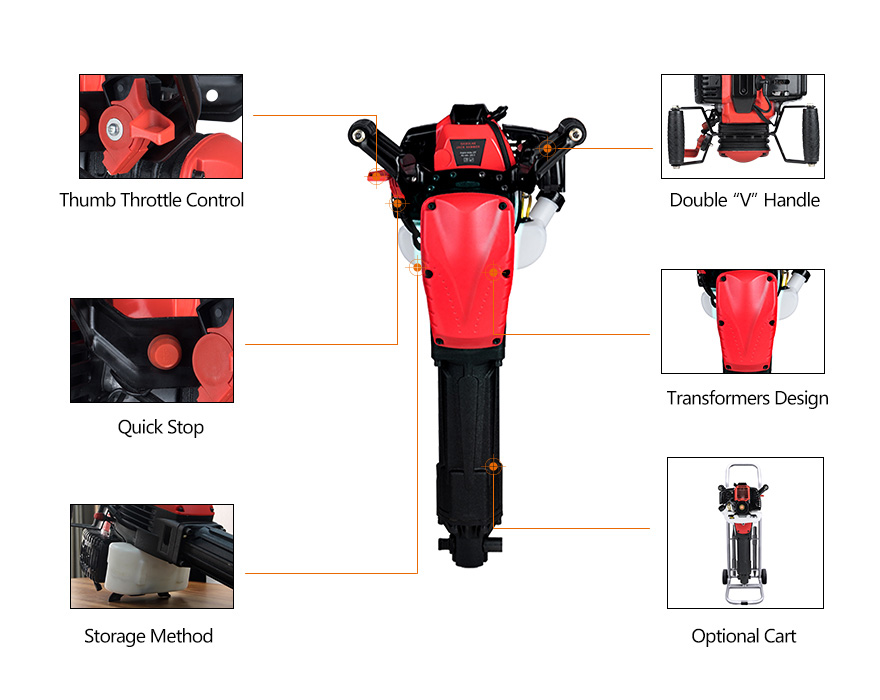

Features:
1. 2-stroke, 49cc engine with large power.
2. 1.2liter fuel tank (CE Type)makes the engine performance and machine ratio better
3. Frame support to protect fuel tank and engine
4.The suction of the hose allows the carburetor to provide air and gasoline better
5.The throttle button controls the amount of oil per minute on-demand
6.The machine can be stopped immediately when necessary by the positioning button

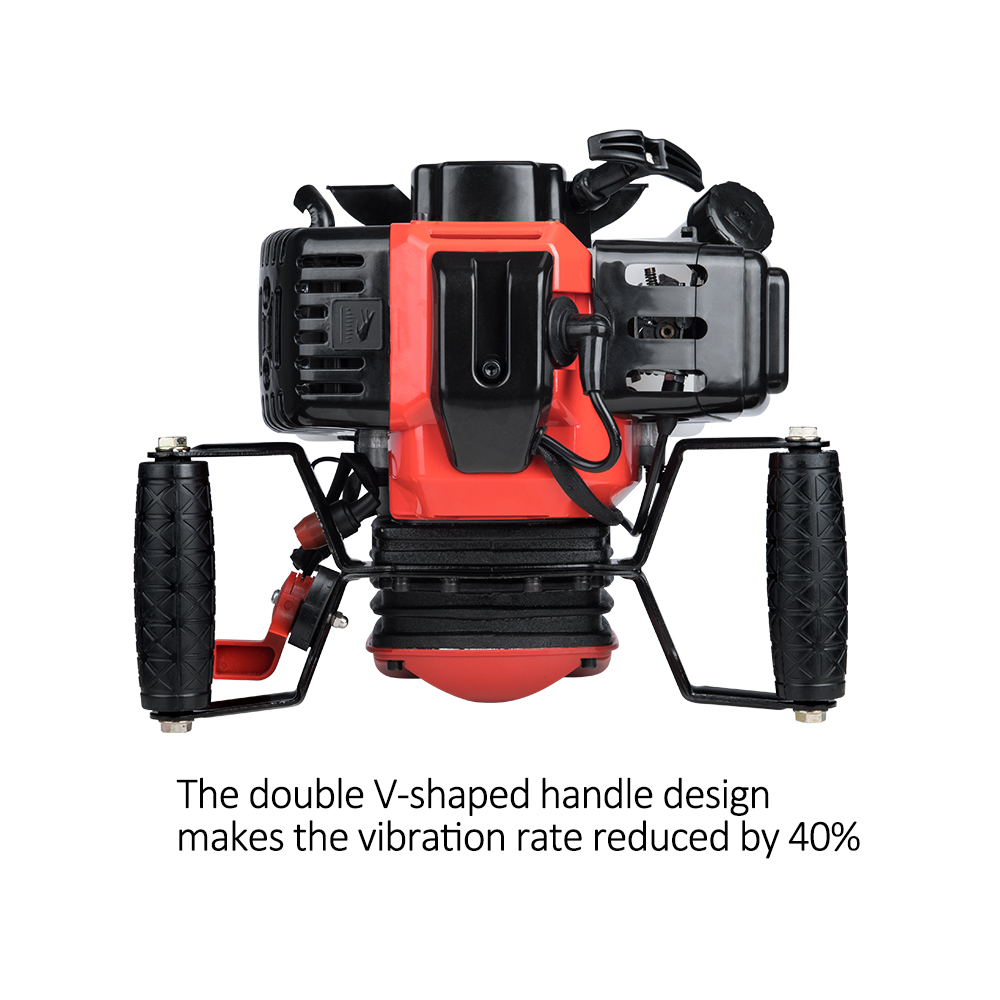

7.The double V-shaped handle design makes the vibration rate reduced by 40%

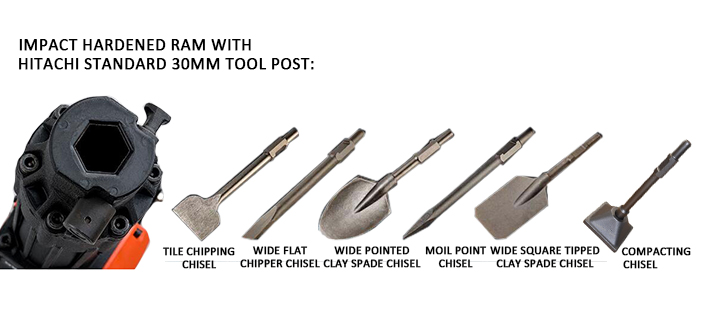

8.To facilitate the installation of a variety of drilling bits due to forged metal bit housing.

Application:
1.Concrete and mining breaking
2.Split hard rocks
3.Drive posts and rods
4.Tampng and compact soil
Availability:
  • DGH-49

  • Thrall petrol tools

OPERATION VIDEO

DGH-49

petrol breaker 003

0002








49-

DGH-49
Art No: 1202049 1202049
Engine Type: 2 stroke, Single Cylinder, Air cooling   (CE) 2 stroke, Single Cylinder, Air cooling   (EPA)
Mixed Fuel: 1.042361111 1.042361111
Displacement 51.7CC 49.4CC
Fuel Tank Volume 1L 1 L
Max Power and Coresponding Rotating Speed 1.4kw / 6500 r/min     1.25kw/ 7000 r/min
Max Torque and Corresponding Rotating Speed 2.2N.m/5000r/min 1.8N.m / 5000rpm
Fuel Consumption Rate ≤ 610 g/kw.h ≤ 500 g/kw.h
Impact frequency 820-1200bpm 820-1200bpm
Impact energy 25-50 J 25-50 J
Starter System Hand-pull start Hand-pull start
Noise: ≤104dB(A) ≤104dB(A)
Dimension: 87.5x38.5x47.5cm 87.5x38.5x47.5cm
Gross/Net Weight: 23/17.5KG             23/17.5KG
Standard accessories:                                                                  1 x pointed chisel                                                   1 x flatted chisel                     1 x oil mixture pot                                                                1 bag tool kits                                                         1 x lube po

Download-49



                  MAINTENANCE VIDEO

49-repair
