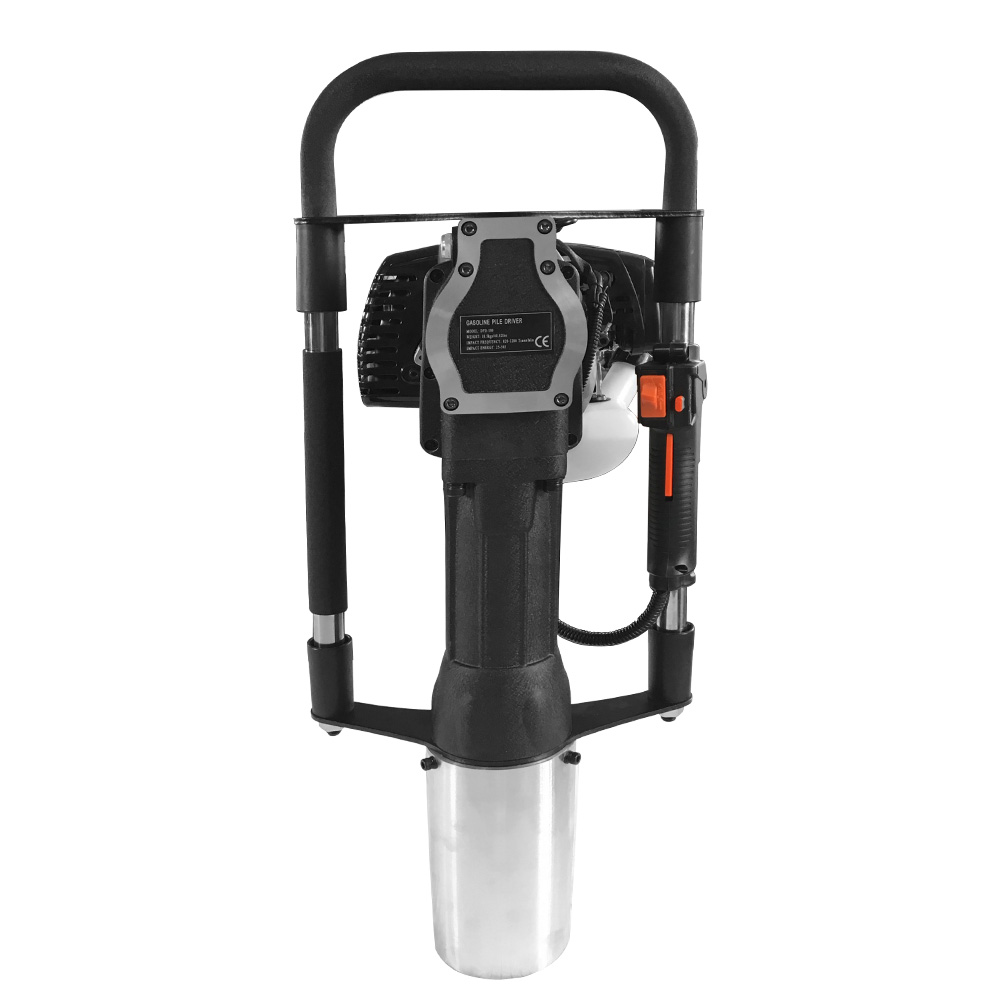

Gas Powered Petrol Fence Post Driver

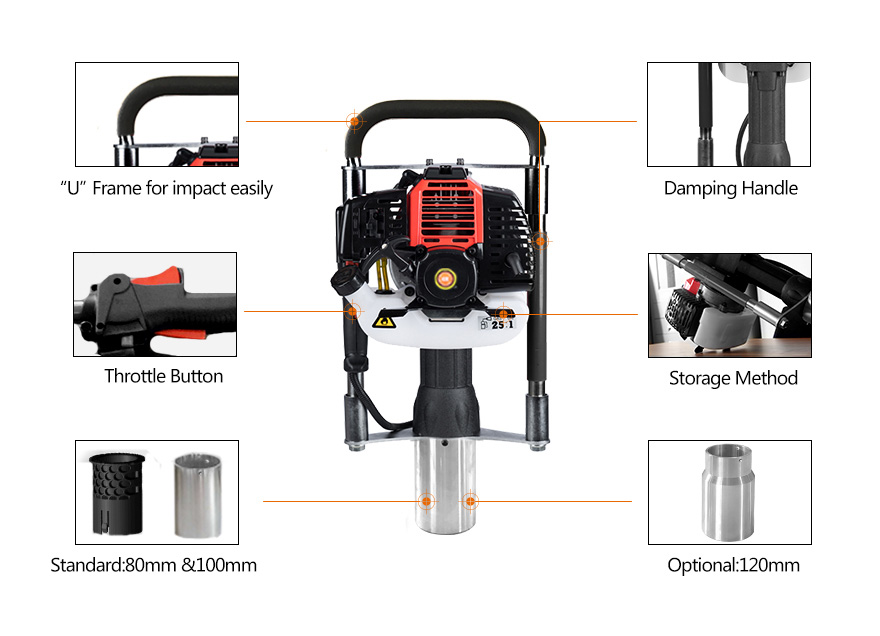

Features:
1.Standard 2-stroke engine, 52cc petrol engine. 4-stroke engine and Honda GX35 optional.
2.Large power and fast impact frequency for harsh ground.
3.With support frame to protect fuel pot and engine.
4.Superior gear quality, no quick-worn problem.
5.No electricity, compressor needed, portable.
6.Damping spring and handle with rubber to reduce vibration in operation.
7.Lightweight 18.5KG, lighter than most large capacity post driver.
8.Packed in BMC carry case.
9.Standard capacity is 100mm, optional 120mm piling sleeve and 80mm adaptor.

Application:

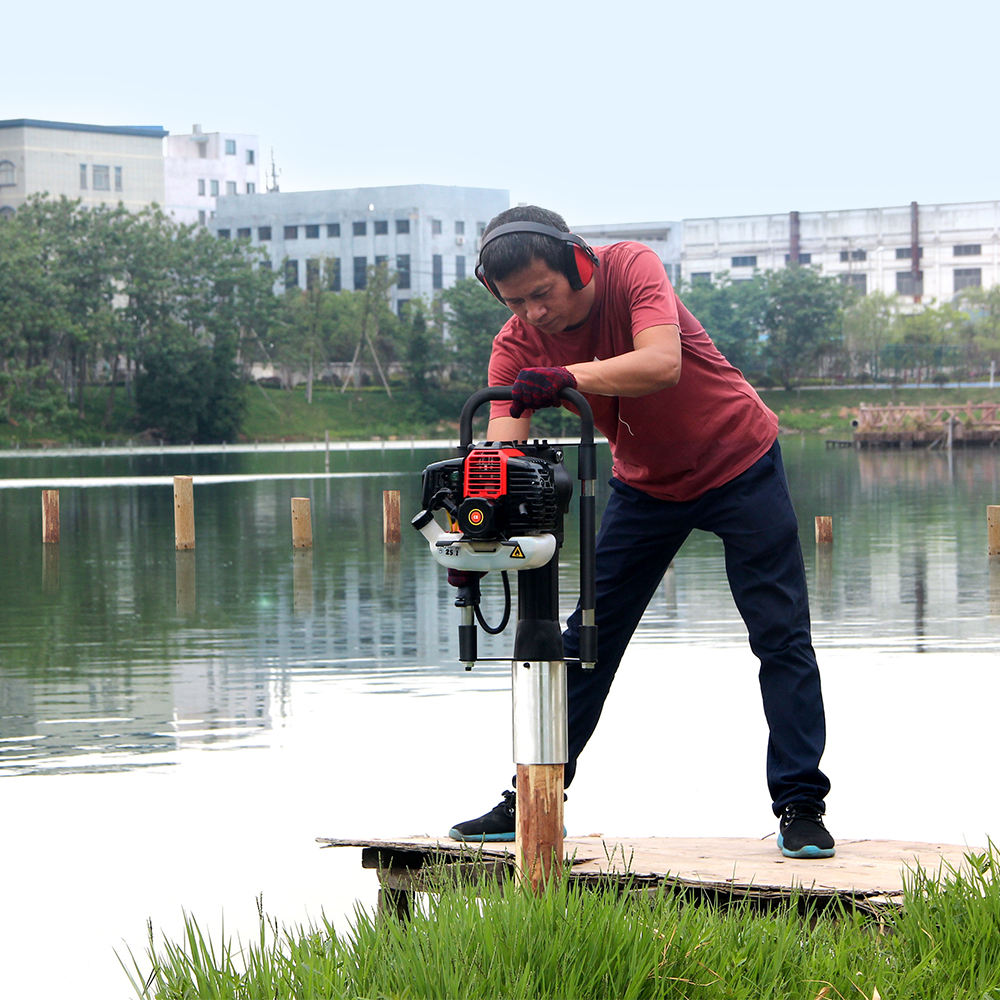

Thrall post driver DPD-100 is designed for professional markets. Fast speed and large power is it dominant advantage. Ideal for fencing, farming, vineyards, landscaping, construction... Any shape posts up to 120mm.
Availability:
Inquire Add to Basket

  • DPD-100

  • Thrall

OPERATION VIDEO

视频

Standard piling sleeve 100mm

Optional 120mm piling sleeve

                                                   Optional 80mm plastic adaptor



003



APPLICATION


100-

DPD-100
Art No: 1201100 1201100
Max. Post: 100mm /120mm 100mm/ 120mm
Engine Type:

1E44F-2A , 2-stroke,

single-Clinder, air -cooled

1E43F-E(EPA), 2-stroke,

single-Clinder, air -cooled
Mixed Fuel: 1.042361111 1.042361111
Displacement: 51.7CC 49.4CC
Fuel Tank Volume: 1L 1L
Max Power and Coresponding Rotating Speed: 1.4kw / 6500 r/min     1.25kw/ 7000 r/min
Max Torque and Corresponding Rotating Speed: 2.2N.m/5000r/min 1.8N.m / 5000rpm
Fuel Consumption Rate: ≤ 610 g/kw.h ≤ 500 g/kw.h
Impact frequency: 820-1200bpm 820-1200bpm
Impact energy: 25-50 J 25-50 J
Starter System: Hand-pull start Hand-pull start
Dimension: 75x30x34 (100mm) /  75x30x35(120mm) 75x30x34 (100mm) /  75x30x35(120mm)
Net Weight: 18.5kgs (100mm) /18.6kgs (120mm) 18.5kgs (100mm) /18.6kgs (120mm)
Gross Weight: 22kgs 22kgs
Standard accessories:                                               1 x tool kits                                                   1 x oil mixture pot
                                                                         120mm piling sleeve option                         80mm adaptor option

PS:  100mm sheelve weight : 710g, 120mm sheelve weight: 810g
