DHD-58 Petrol Powered Hammer /Drill (Two Function )

Features:
1. Efficient machine with very compact structure, easy controlling.
2. Hand-held drill with breaking and drilling 2 In 1 function
3. SDS-Max drill bit receptacle
4. Suitable for outside situations without water and electronic power.
Application:
1.Hammer drill or break concrete, asphalt, masonry, stucco, etc.
2.It's widely used in mine, road construction, quarrying,national defense works etc.
3.Cleaving rock, bruishing the concrete foundation, tamping the railroad bed, small
area tamping by combining with auxiliary means.
Availability:
  • DHD-58

  • Thrall petrol tools

OPERATION VIDEO

视频

003

004



58

DHD-58
Art No:                                    1201058                                 1201058
Engine Type:

140FA, 4-stroke,single-ylinder,

air -cooled

1E36F-2E,36x32mm, 2 stroke,

Single cylinder, air cooled

Fuel: 86 otane, unleaded gasoline or higher mixed oil25 gasoline:1 motor oil)
Displacement: 37.7CC 32.6CC
Fuel Tank Volume: 0.64 0.9L
Oil Capacity             0.12L /
Max Power and Coresponding Rotating Speed: 1.3hp/6,500r/min 900W /7500 r/min
Max Torque and Corresponding Rotating Speed: 1.63N.m/5,500r/min 1.45N.m / 5000rpm
Fuel Consumption Rate: ≤0.8L/h ≤ 0.5L/H
Impact frequency: 800-2800BPM 800-2800BPM
Impact energy: up to 43.4J up to 35J
Starter System: Hand-pull start Hand pull start

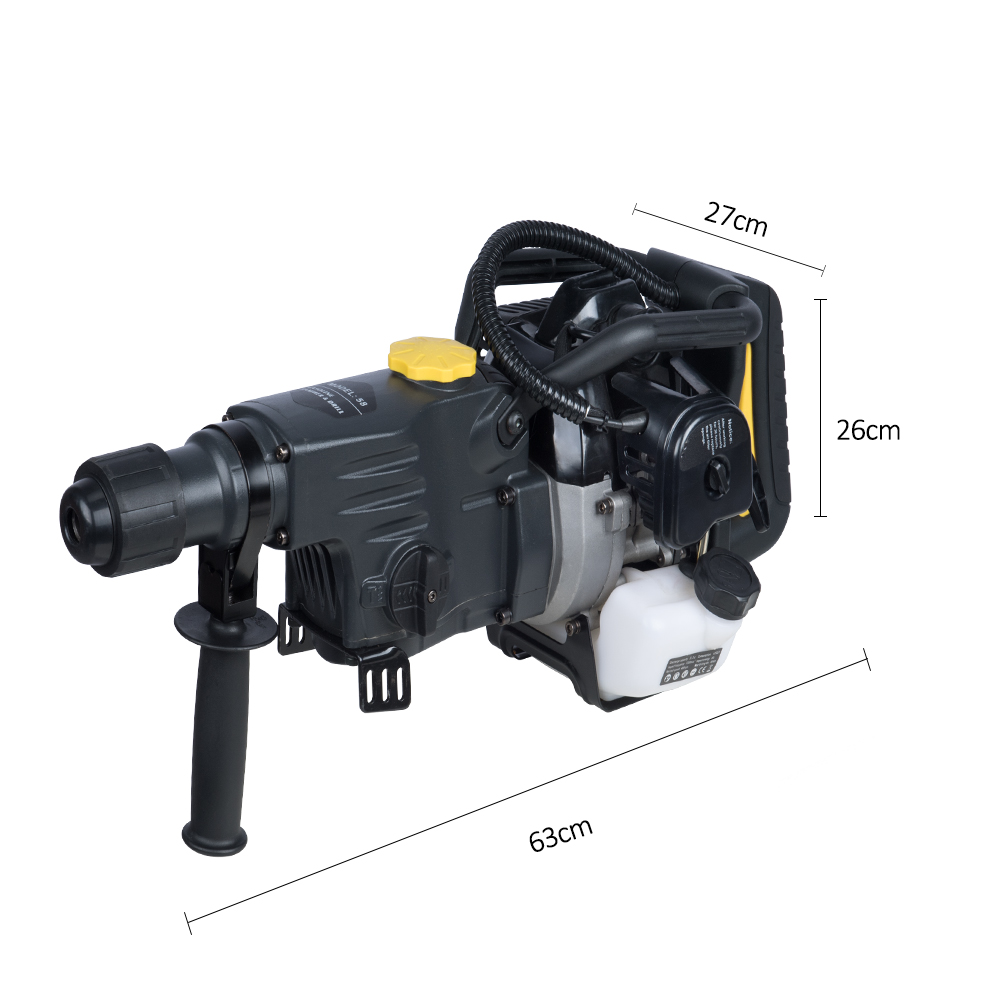

Dimension: 49x26x30cm 49x26x30cm
Gross/Net Weight: 12/11KGS 11/10KGS

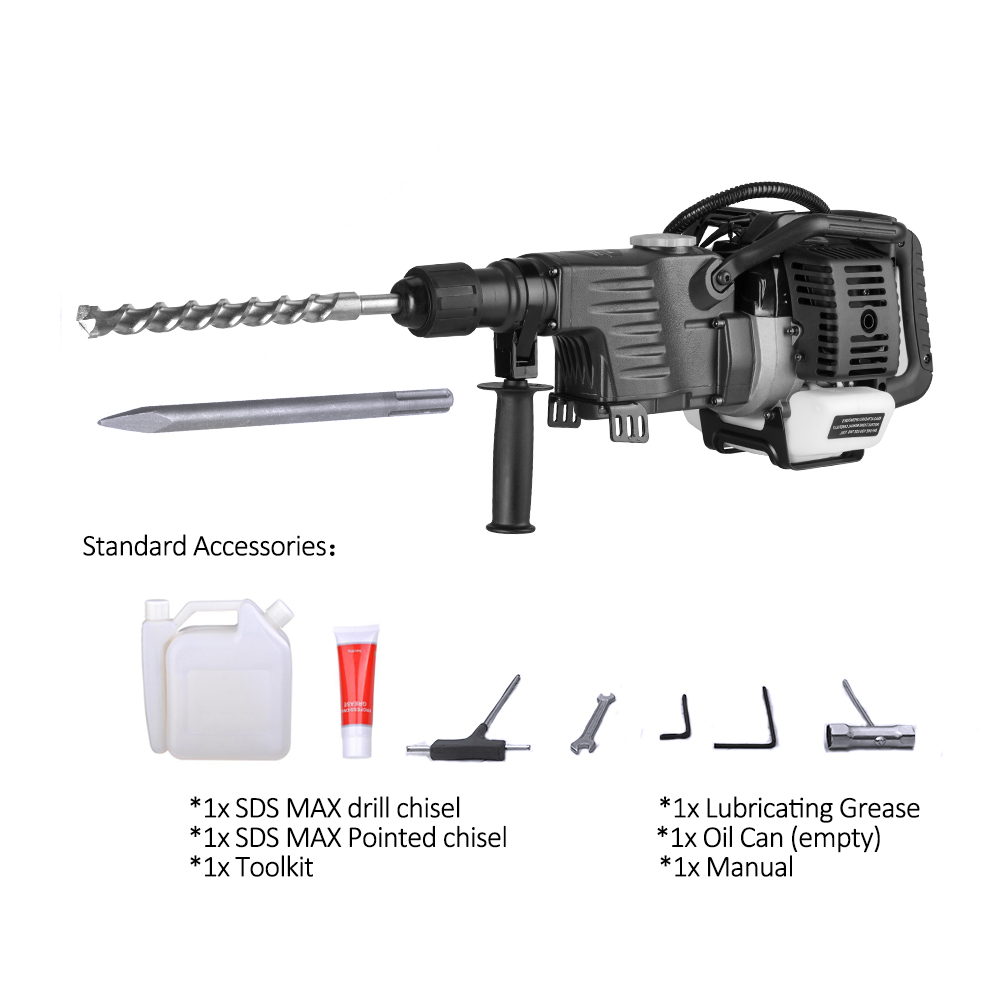

Standard accessory:                                                                1 x pointed chisel                                          1 x flat chise


                                                                                                     1 x oil mixture pot                                         1 bag tool kits






Download-58
